Automation Lines
Features
Electronic Pad Printing machines are equipped with brushless motors
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
-
KP/E04 Pad Printer
The KP04 Pad Printing Machine is the smallest horizontal pad printer we offer. The machine is equipped with a digital programmable microprocessor capable of executing multiple operations and performing all production functions.
- This pad print machine is ideal for horizontal inline printing of parts that need to stand vertically, and can also be modified to print from below onto the bottom of parts being conveyed over the printer.
- Adjustable for use with multiple sizes of sealed cups and clichés.
- Features a horizontal pad stroke adjustable between 45 and 90 degrees.
- Built to accept a 60mm, 90mm, 130mm or 160mm sealed cup with minimal modifications.
- Pad stroke is variable to 8 inches
- Two horizontal printers can also be configured to print on opposite sides of bottles or other items simultaneously
- Flexible control panel positioning based on manufacturing requirements.
- The machine is equipped with a digital programmable microprocessor capable of executing multiple operations and performing all production functions.
- Available only as a one-color pad printer.
- Accepts a 90mm sealed ink cup and 200mm x 200mm cliché.
- The KP04 GL accepts a 60mm sealed ink cup and 200mm x 200mm cliché upon which one can etch multiple images.
-

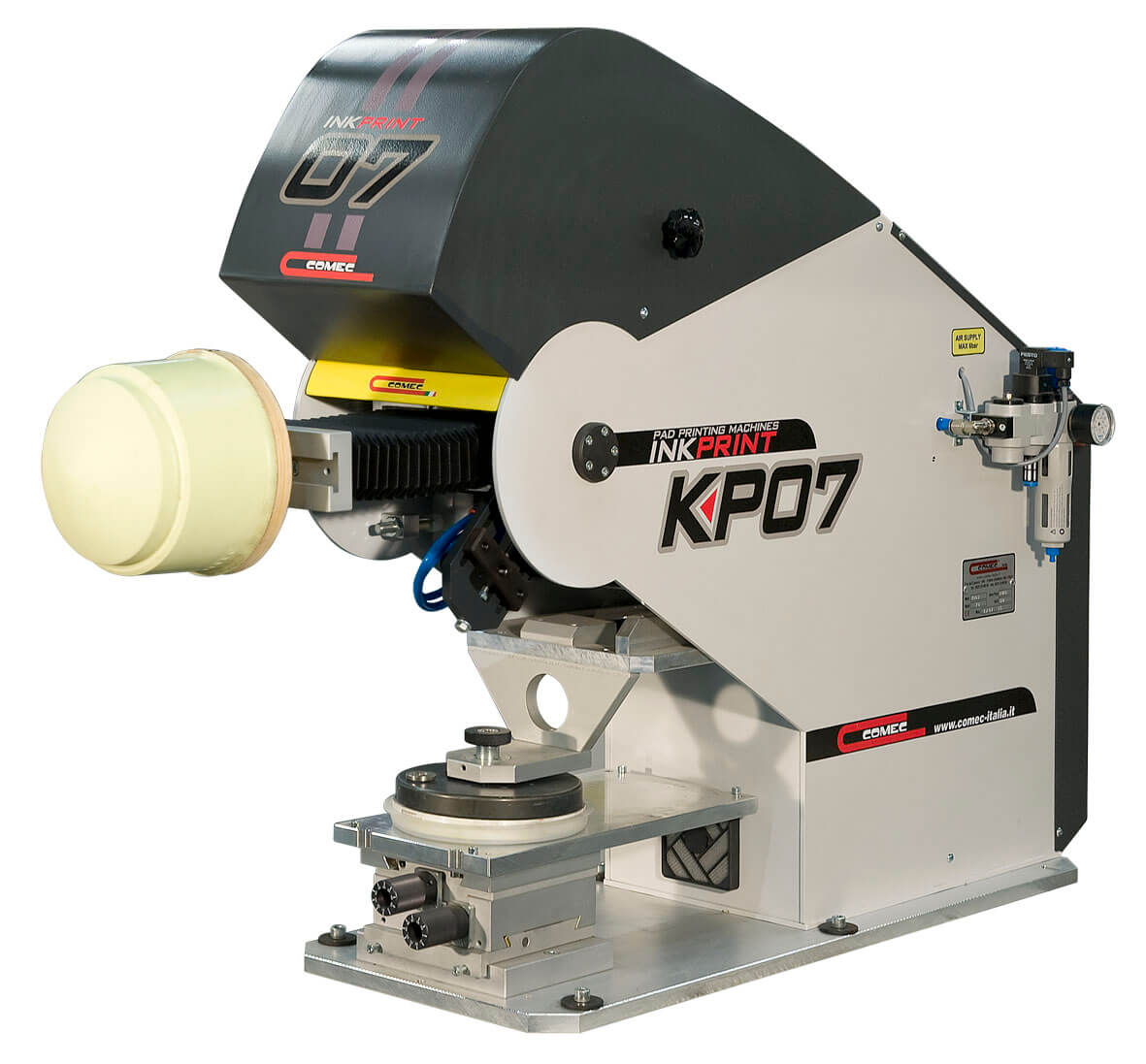

KP/E07 Pad Printer
The KP07 Pad Printing Machine features a horizontal pad stroke adjustable between 45 and 90 degrees, plus the flexibility to accept multiple sizes of sealed cups and clichés.
The KP07 is ideal for horizontal in-line printing of parts that need to stand vertically.
Can also be modified to print from below onto the bottom of parts being conveyed over the printer.
Two KP07s can be configured to print on opposite sides of bottle or other items simultaneously.
The machine is equipped with a digital programmable microprocessor, capable of executing multiple operations and performing all the production functions.
Flexible control panel positioning based on manufacturing requirements.
The KP07 is available as a 1 color to 4 color printer.
The standard KP07 is built to accept 60mm, 90mm, 130mm or 160mm sealed cups with minimal modifications. -
KP/V09 Pad Printer
The KP09 is a pad printer with a small footprint for easy integration into existing automation production lines. Despite its small size, its pneumatically controlled Z-axis movement is capable of 2,000 cycles per hour.
Small footprint.
Flexible control panel positioning based on manufacturing requirements.
Programmable pad cleaning system.
Touch screen control can be accessed remotely through wireless.
Pneumatically controlled Z-axis movement at 2,000 cycles per hour.
