EOAT Direct-to-Object Digital UV Industrial Automated Single Pass Inkjet Printer

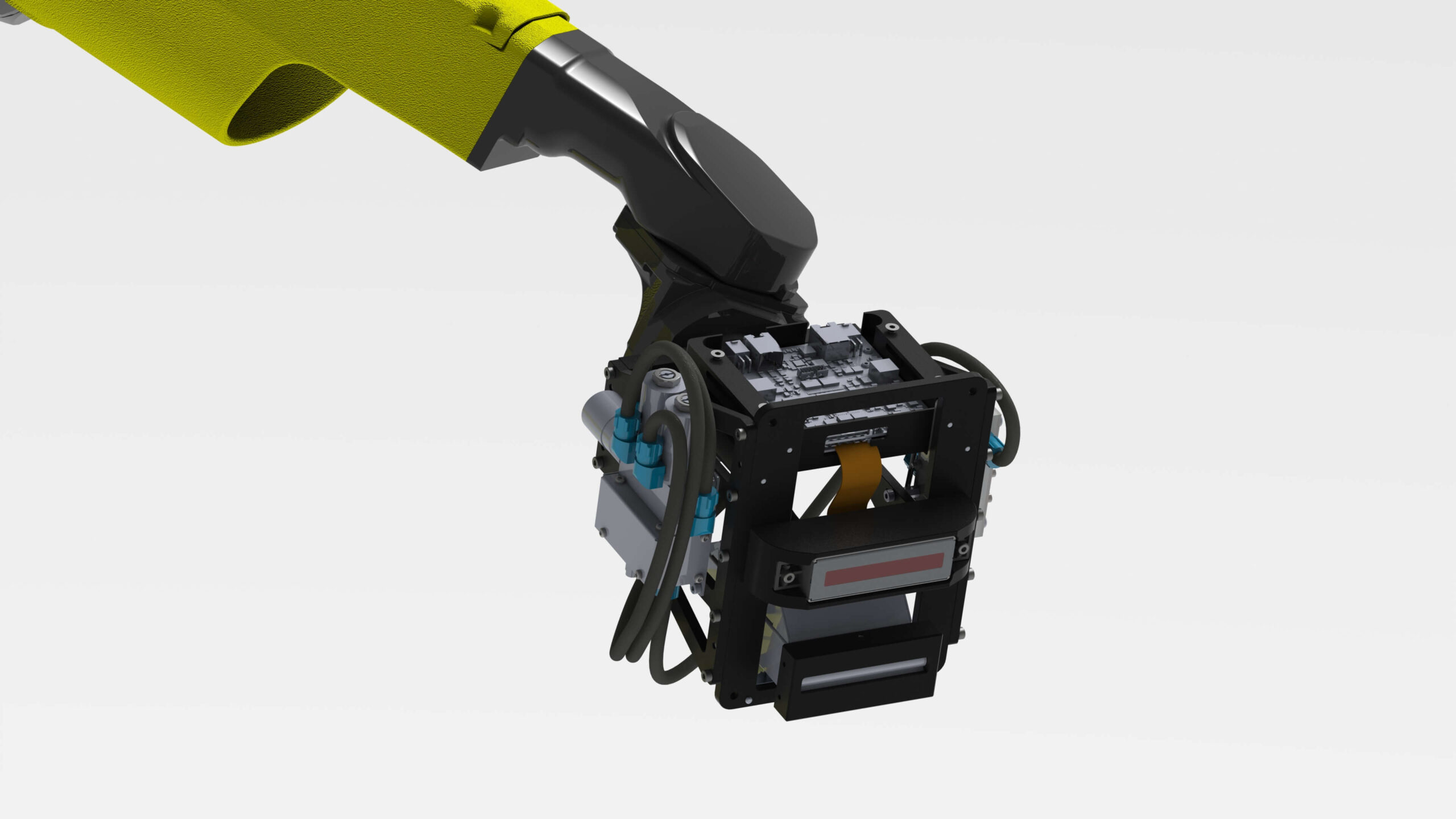

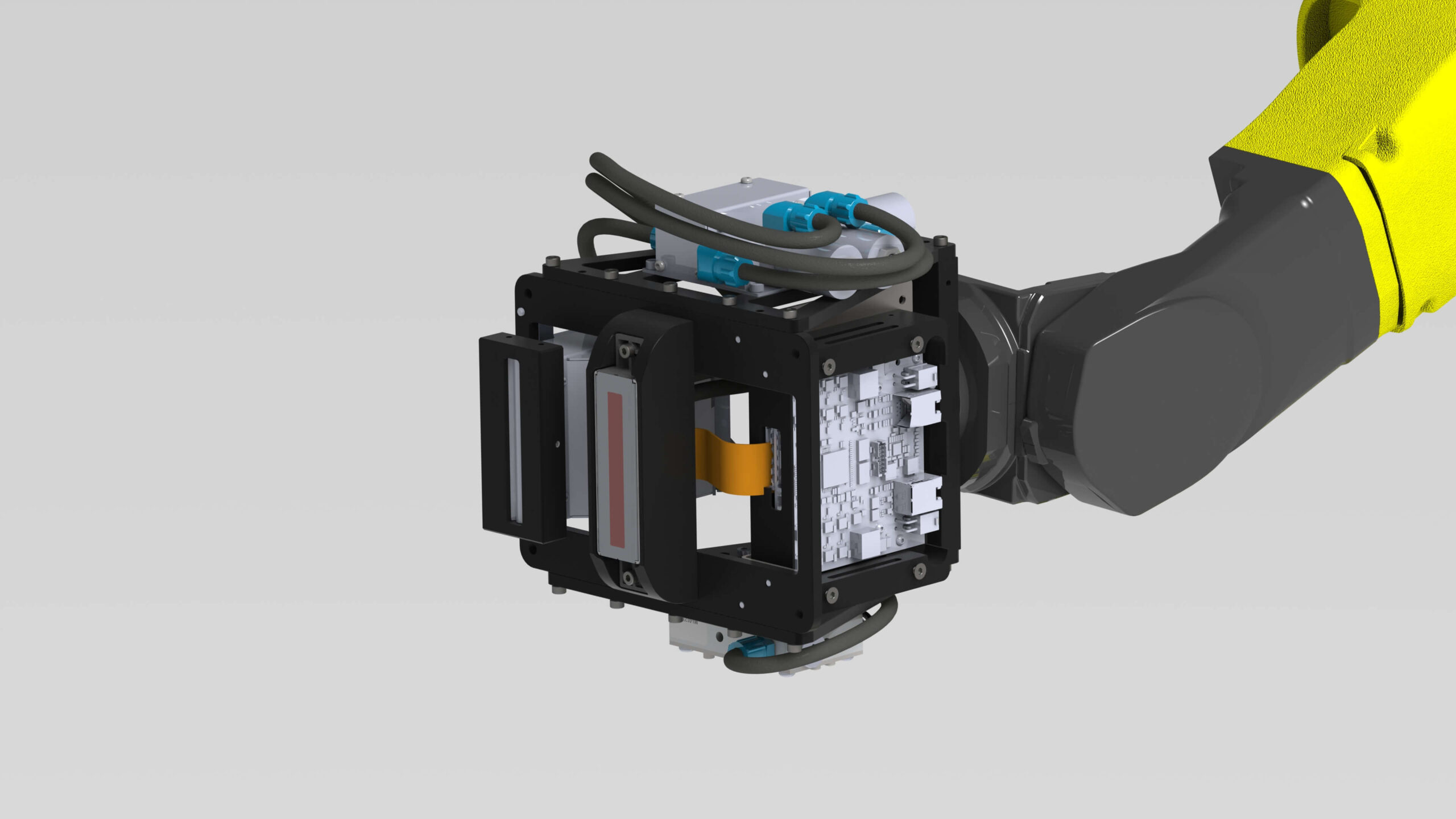

Multi-surface prints in single cycle on 3-dimension objects with a multi-directional print head which can jet ink up to 17mm away from target
Standard Features
- 70mm, 140mm and 210mm print width, infinite length.
- 360dpi, single pass, grayscale.
- Max robot reach of 3 meters.

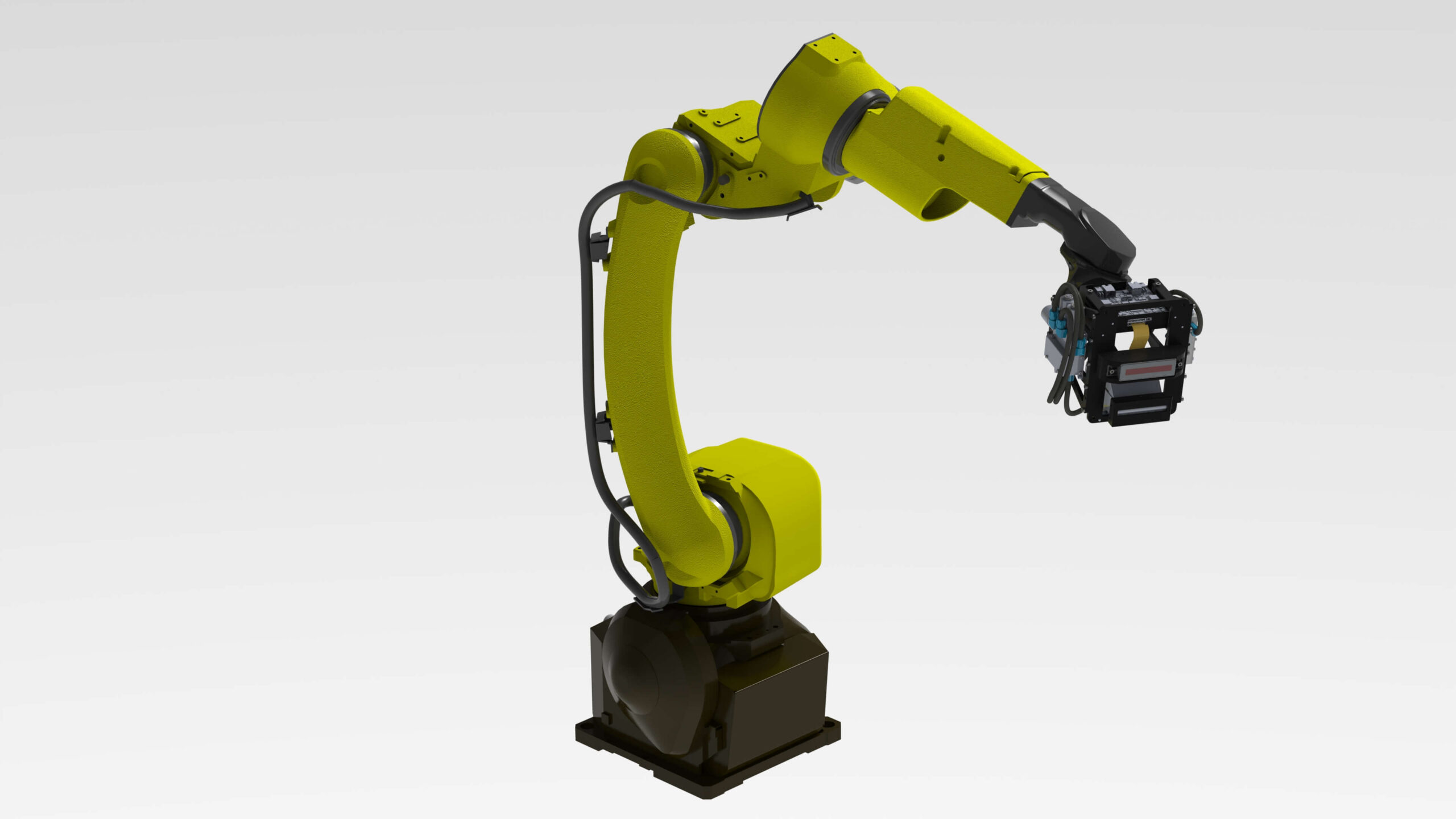

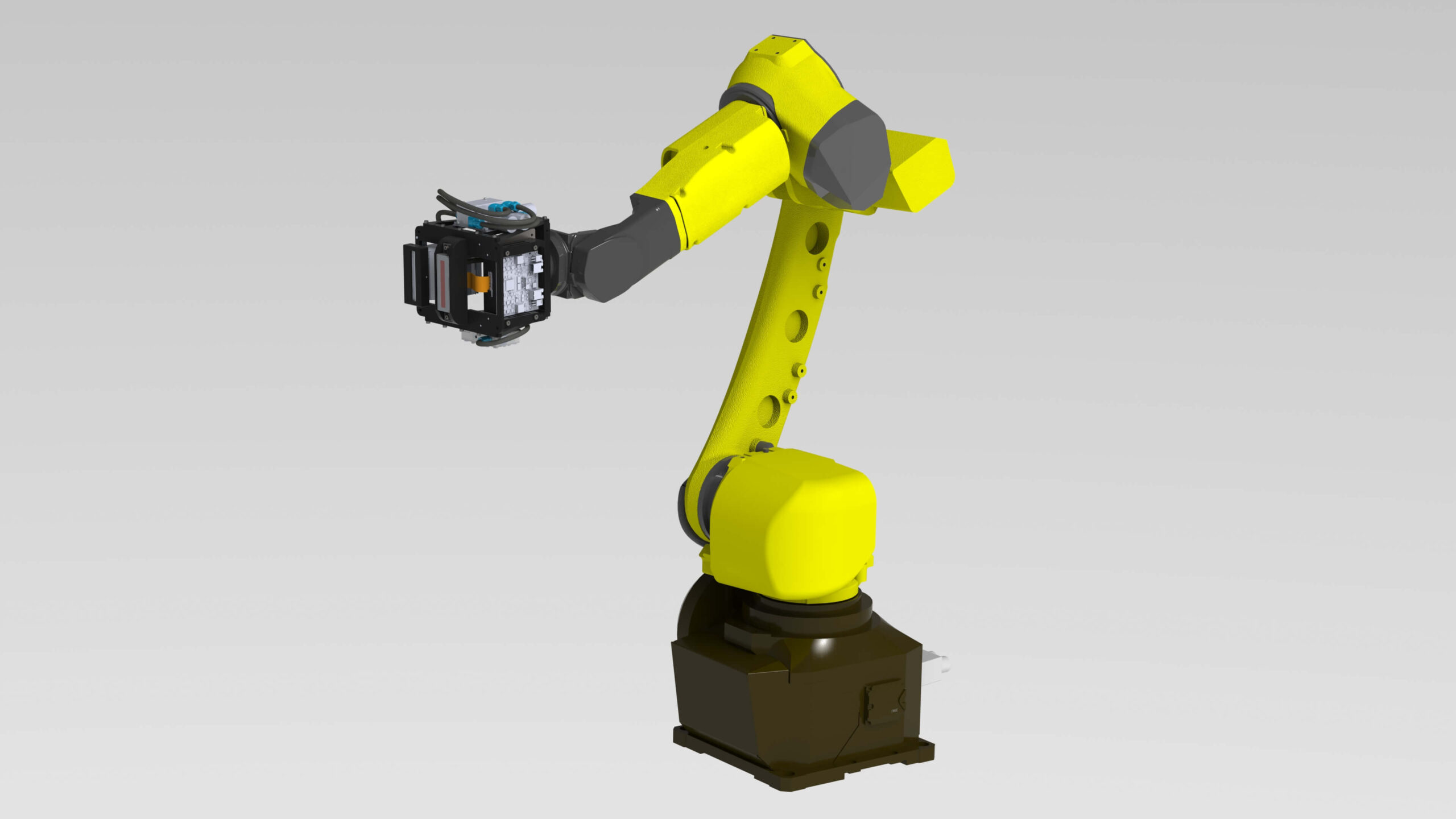

- Fanuc industrial robot.
- Print speeds up to 6in/s on curved or large surfaces.
- Liquid UV curable inks.
- Self-contained ink system with bulk refill.
- Built in distance/object detection.
- Job & Print Queue Management for local and remote diagnostics.
- Beckhoff Industrial PC with standard HMI interface.
- Remote customer interface.
- Typical Power Requirements: 240VAC, 50/60Hz, 3 phase, 20A.
Options
- Second color option.
- 2D and 3D iRVision for positioning and verification
- Variable data for lot/date codes, etc.
