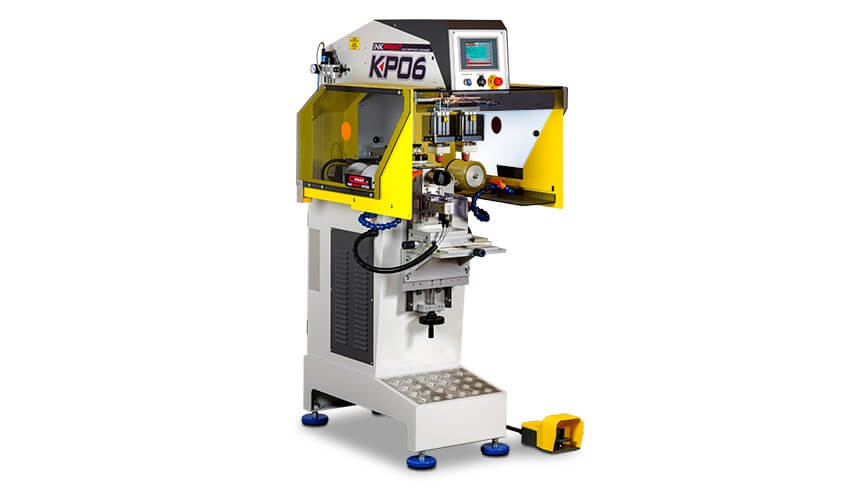

KP/E6 Pad Printer
If it’s versatility you want, check out the KP06. This pad printer can be used as a single-color machine, two-color machine, and rotational printer. It is electro-pneumatic controlled via a digital programmable microprocessor.
INKPRINT KP06 is an electropneumatic medium sized pad printing machine, designed for small and medium production. Easy to use, it requires no special maintenance, and like all machines built by Comec Italia has the best qualifications for latest generation pad printing: hermetic inkcup with ceramic ring for ink saving (50%), rapid color changes and healthy working environment (size: 110mm diameter and cliché 120x250mm); selected materials; high level of technology and reliability, but especially a mode of operation designed for those who work.
The heart of INKPRINT KP06 is in fact the management software, complete with ergonomic operator interface with backlighted display, with intuitive and high performance features. It allows you to set the work in single cycle, automatically or manually. Working in manual mode, the operator can program independently all operations of the print cycle: this feature is very useful for setting up new jobs. In particular, it is possible to program: the addition of a pause in seconds before picking up the ink from the cliché and before printing on the workpiece, the latter differentiable by color; the sequence of the down movements of the pads on the workpiece; the pressure of the pad on the cliché and on the piece during printing; the time of loading and unloading of pieces in automatic mode, without further changes on the other parameters; the use of the RR cycle to print the second color on the stationary piece; the use of pneumatic rotary table or two positions rotary transfer; automatic cleaning of the pads; the use of any automatic devices for loading / unloading pieces, if connected to the machine; progressive piece counter resettable by the operator; programmable countdown with machine stop at reaching the desired production; display language: Italian, English, French, Spanish, German; date and time.
The machine is fitted to be inserted on any automated production line, with electric inputs and outputs. In addition, it could be integrated with other optional equipment such as rotary table for the positioning of the pieces to be printed, automatic pad cleaning device, apparatus for flaming or corona treatment, hot air dryers (Hot wind 200), pick and place loading/unloading of the pieces to be printed.
With the KP06 fixed cup design, the cliché moves forward and back prior to the cycle start. The pad is in the back position, allowing the operator excellent access for loading and unloading parts.
Pneumatic operation guarantees excellent uniformity in printing.
Simple to use electronic touch screen controls the print and cliché pause, single cycle, continuous cycle, manual mode, increase/decrease stroke on cliché and part.
All functions are controlled by a digital programmable microprocessor.
All control is via a touch pad with integration of all machine movements.
Flexible control panel positioning based on manufacturing requirements.
