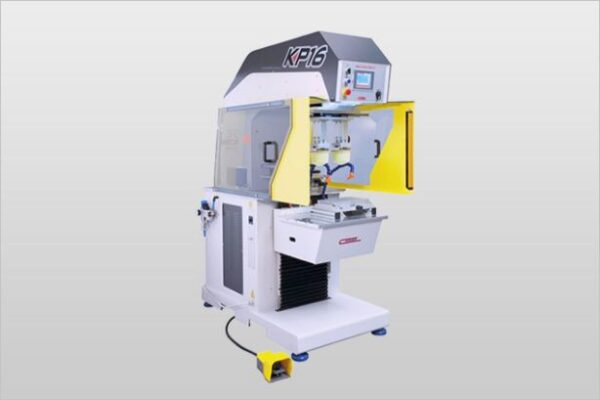

KP/E16 Pad Printer
The KP16 Pad Printing Machine allows greater flexibility when printing on large format pieces such as appliance panels, hard hats, satellite dishes, etc.
The SLIDE type is available for some machines of the series KP and KE, as the KP-08 and KP 13 and allows printing up to 2 colors on objects of medium and large size, also on uneven surfaces.
This important result is achieved thanks to an updated conception of the printing, which involves the horizontal movement of inkcups and allows in this way to have a greater print area: the space needed to make larger prints on larger surfaces.
The SLIDE set supports inkwells from 60 to 250mm in diameter (which means that we can get a print up to 225x700mm). Even the piece holder is designed to make room for large-scale items, for fast centering of the print area.
SLIDE machines have the best equipment of Comec Italia machines: management software with intuitive and ergonomic user interface, manual adjustment of the cliché slots, mechanical configuration for the automated lines, opportunity to install several optional devices specifically designed for the various printing needs, such as automatic pad cleaning device, jet of hot air, various feeders.”
- Equipped with a state of the art controller and a large touch pad LCD display with features such as variable time delay on the pad stroke for both ink pick up and ink deposit.
- Flexible control panel positioning based on manufacturing requirements.
- Can be configured with 1 to 5 colors and is fitted with a 160mm sealed ink cup.
- The KP16 is an electro-pneumatic functioning pad printer that produces high quality printing, even on irregular surfaces.
Many options are available including:
- Automatic pad cleaning
- Hot air on pads
- Pre-treatment: gas flaming or corona
- UV ink dryer
- Automatic pick-and-place for loading & unloading product
- Multiple conveyors, feeder options & more
