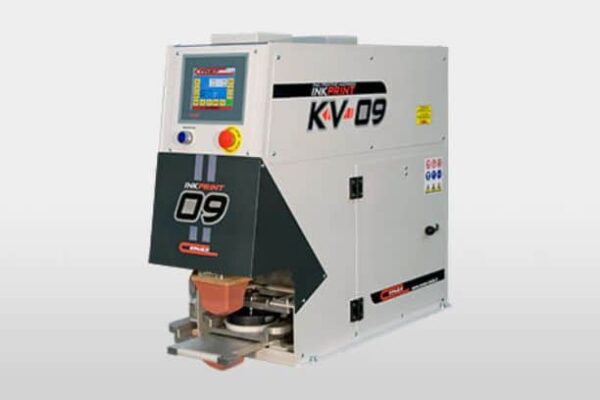

KP/V09 Pad Printer
The KP09 is a pad printer with a small footprint for easy integration into existing automation production lines. Despite its small size, its pneumatically controlled Z-axis movement is capable of 2,000 cycles per hour.
These machines have a Windows®-based operating system that drives a completely servo-controlled print head and conveyor unit. A 20GB hard drive allows storage and instant recall of hundreds of jobs with all print parameters. Remote status tracking or programming can be done via Ethernet connectivity.
These are electro-pneumatic pad printers with 130mm to 250mm cups, respectively. High-quality printing, even on an irregular surface, with four or five colors. The touchscreen panel displays machine function such as downstroke, front and back pause and speeds.
Features:
- One to five color configurations available.
- Equipped with a state-of-the-art controller and large touchscreen display.
- Modular “plug and play” software and mechanical combi style allows for a multitude of accessories – rotary, linear and elliptical conveyors, flamers, plus longer clichés for a cupslide.
Small footprint.
Flexible control panel positioning based on manufacturing requirements.
Programmable pad cleaning system.
Touch screen control can be accessed remotely through wireless.
Pneumatically controlled Z-axis movement at 2,000 cycles per hour.
