XDLT High-Speed Direct-to-Object Digital UV Industrial Automated Single Pass Inkjet Printer

The XDLT represents a significant leap forward in decorating equipment and the XDLT fills a crucial void in the market, catering to the needs of businesses that require high-quality printing solutions without breaking the bank.

Share:

By integrating the reliability and high performance of continuous printing with Through-flow print head technology, it offers a seamless solution for businesses seeking enhanced efficiency and versatility in their printing processes.

What sets the XDLT apart is not just its advanced technology, but also its lighter and more nimble design. This combination of features ensures that the XDLT is not only capable of delivering top-notch results but also offers flexibility and ease of use, making it a valuable asset for businesses of all sizes.

Positioned strategically between existing UV flatbed and high-speed custom single pass lineups, the XDLT strikes a perfect balance in terms of both price and capability. It fills a crucial void in the market, catering to the needs of businesses that require high-quality printing solutions without breaking the bank.

With the XDLT, printing becomes not just a task but an experience. Its innovative features and unparalleled performance are poised to revolutionize the way printing is done, empowering businesses to achieve new levels of productivity and creativity.

Model Features

  • Xaar Nitrox Print heads (WWCMYK)XDLT Specs
  • GIS print electronics for static data
  • CIMS II 450 ink management system
  • Integration Technologies UV Pin and Cure
  • Welded steel frame
  • Max printable product size (6in x 8in)(HxW)
  • Standard conveyor design (14in/s)
  • Manual Z and Cross Track adjustment
  • Maintenance Waste Tray
  • Ventilation hookup
  • Crash Detect included for protection of printhead
  • Beckhoff Industrial PC with standard HMI interface
  • Standard customer interface connector for I/O and E-Stop circuitry

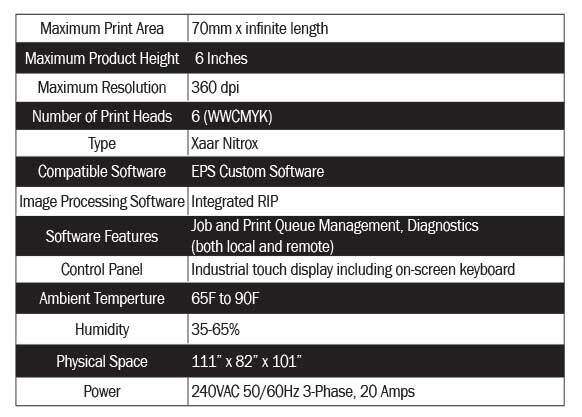

Power

240VAC 50/60Hz 3-Phase, 20 Amps

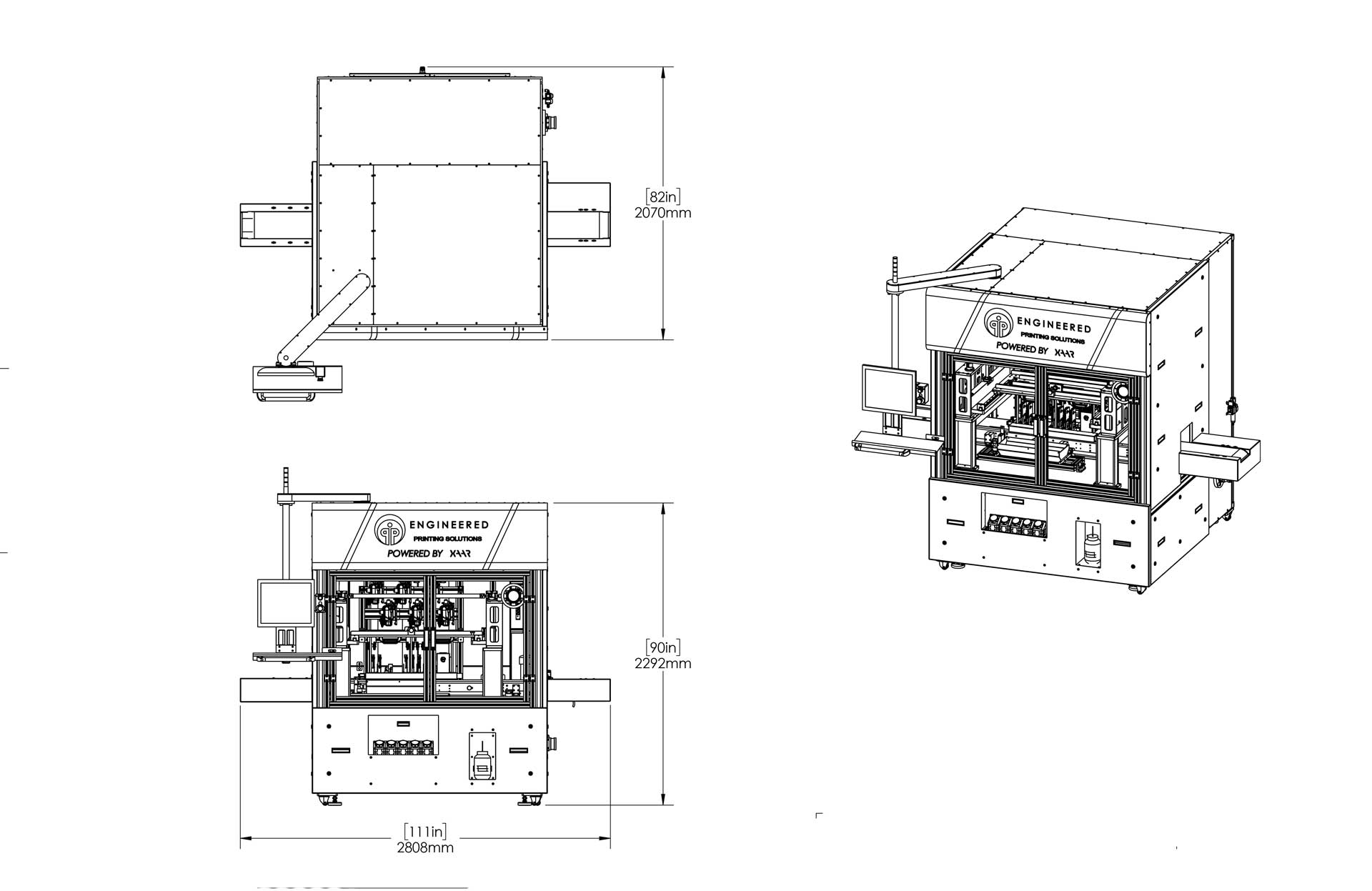

Physical Space

111” x 82” x 101”

Humidity

35-65%

Ambient Temperature

65F to 90F

Control Panel

Industrial touch display including on-screen keyboard

Software Features

Job and Print Queue Management, Diagnostics (both local and remote)

Image Processing Software

Integrated RIP

Compatible Software

EPS Custom Software

Print Head Type

Xaar Nitrox

Number of Print Heads

6

Printable Area Width

Maximum Product Height

6"

Printable Area Length

Maximum Resolution

360 dpi
