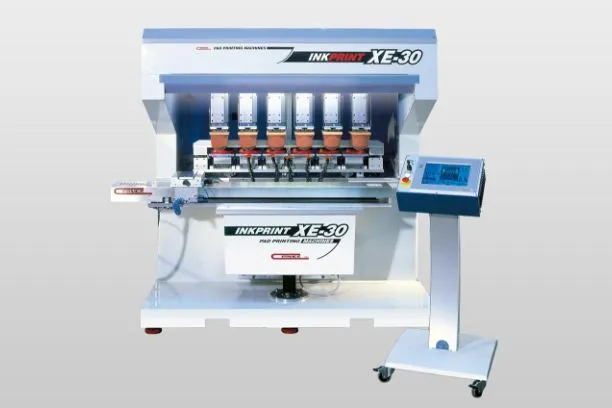

XE30 Pad Printer
The XE30 Pad Printing Machine is the largest electronically controlled pad printing machine on the market. It’s designed to satisfy the printing of large items, decorating up to eight colors.
Precision, personality, reliability: these are the requirements of the XE30, a pad printing machine with electronically controlled axes for printing up to 8 colors, on large objects. It is equipped with hermetic inkcups and ceramic rings of varying size depending on the number of colors (example: 8 colors 130 mm diameter inkcup, 4 colors 250 mm diameter inkcup), enclosed in a sturdy steel and aluminum frame. Thanks to a PC with touch screen interface you can manage, through an intuitive and fast program, all machine movements, including movements of the axes, equipped with brushless motors that ensure speed and accuracy in printing. Also the workpiece holder shelf is motorized, for a simple and versatile management of the different works to be carried out. XE30 is arranged, as all the machines designed and built by Comec Italia, to be completed by a series of optional devices: automatic and programmable pad cleaning device, pre-treatment system with gas flaming or corona device, automatic devices for loading and unloading of the pieces, hot air on the pads (Hot Wind 200), linear feeder or step feeder. In addition, it is equipped with safety protections of aluminum and plexiglass with cross-infrared rays barrier, according to the current regulations.
- Electronic control of axes. The axes movement is controlled by pc with touch screen interface.
- The down movement of the pads can be controlled with independent cylinders.
- XYZ axes are driven by brushless motors to allow high precision at a high speed.
- Includes linear shuttle as standard, available with optional linear conveyor or elliptical conveyor.
- 8 color version, 8 hermetically sealed cups with 130mm diam. rings print area of 115x300mm.
- 6 color version, 6 hermetically sealed cups with 160mm diam. rings print area of 145x300mm.
- 4 color version, 4 hermetically sealed cups with 250mm diam. rings print area of 230mm.
| Printing Type | Pad Printing |
|---|---|
