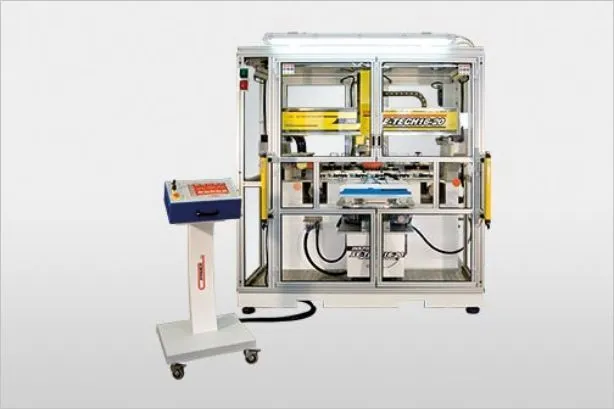

XETech 16-20 Pad Printer
The XE TECH was designed to meet the needs of multiple surface printing, colors and pads that were managed by multiple machines. This machine can also accommodate large panels up to 1 meter x 1/2 meter.
It is a fully automated and computerized system controlled by a touch screen PC, capable of self-learning the ink pick up and print points. In addition, you can make the best suited choice to the work to be carried out between 3 different pads and 6 cliché (with hermetic inkcups and ceramic rings). Here is that in a single machine are collected the possibilities of many printing devices.
The on-board computer hard disk can store hundreds of programs, which in turn contain up to 50 printing stages each. A USB key for the back up is included with the machine.
The steel and aluminum structure contains: a pad printing head movement group on x and y axes with brushless motors; a second movement group on z axis always with the brushless motor and magnetic coupling pad; 3 pads with quick-coupling device; motorized pieces holder; automatic and programmable pads cleaning device.
The machine is also equipped with hot air model Hot Wind 200 with adjustable tubes to direct the jet of air wherever needed and vacuum device for holding the piece being printed.
Built according to CE standards, XE TECH 16-20 mounts aluminum and plexiglass integral security guards with cross-infrared rays barriers. Alarm inputs and outputs diagnostics can be done directly from the touch screen.
Steel and aluminum construction.
Programs can be saved and stored on the PC.
Uses a magnetic head for pad picking with rotation possibility from 0 to 360°.
Can access multiple artworks etched onto a single cliché.
Brushless motors with lead nuts and ball screws on bearings, to ensure spot-on printing precision.
One movement group with pad printing head on X/Y/Z axes with brushless servo motors and rotational head.
Automatic pad changing from 3-5 pads.
Automatic pad cleaning available.
Motorized fixture support bracket.
Built with perimeter security features.
| Printing Type | Pad Printing |
|---|---|
| Production Needs |
